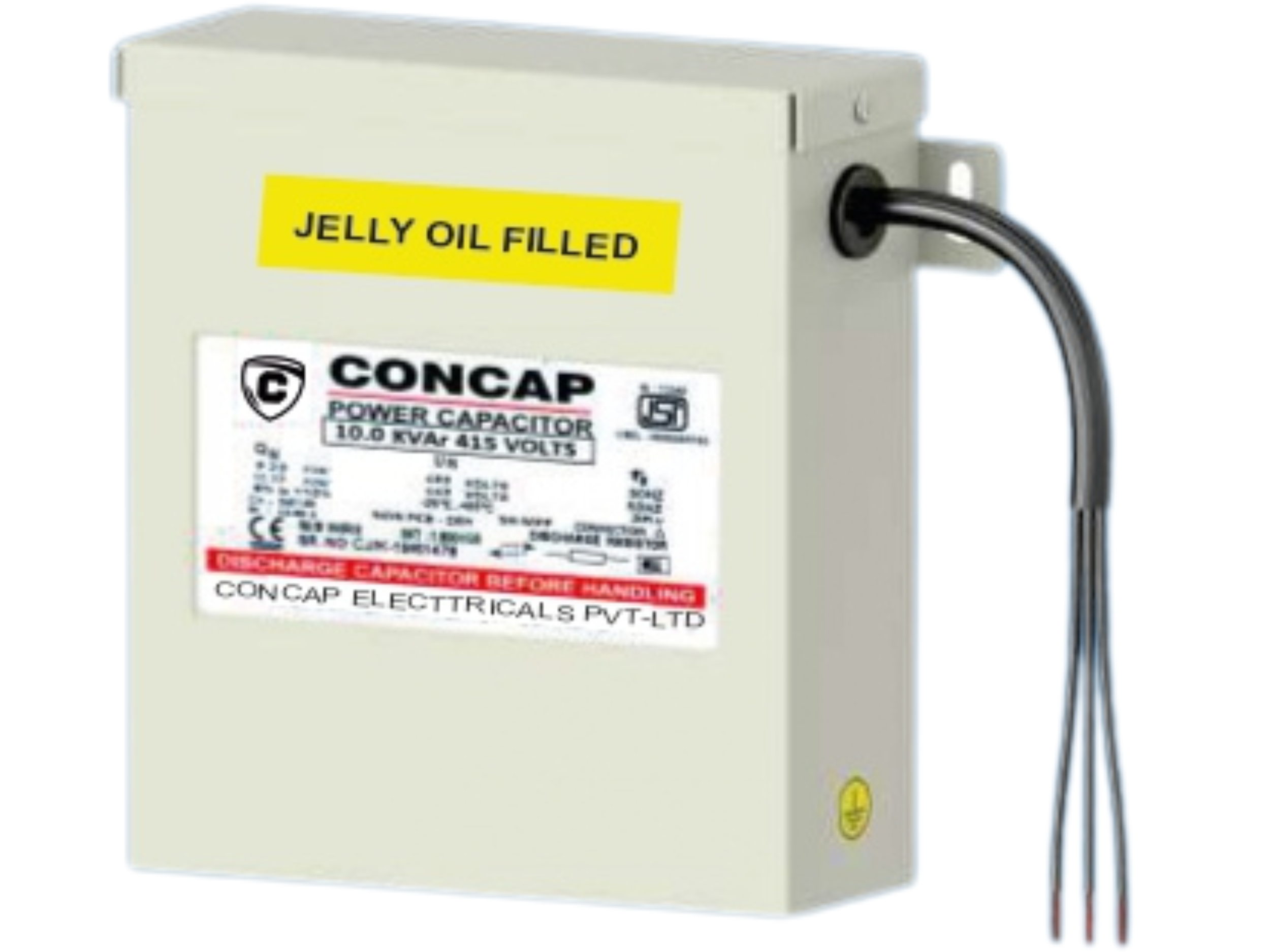

Concap MS Box with Wire Capacitors

Specification
  • Conforming to BIS Standards 13340 Part I IEC 60831 - I
Safety
  • Self-healing property eliminates possibilities of short circuit as internal faults heal automatically
  • Easy Connection - Wire termina
Applications
  • Power Factor improvement Correction in Agriculture application
  • Fixed PFC applications, e.g.Motor compensation
Electrical
  • Long life expectancy up to 100000 hours
  • Max inrush current handling capability 200 x IR
Mechanical and maintenance
  • Easy installation and connection
  • Low weight and compact volume
  • Maintenance-free
Features
  • MS Box / Plastic Box
  • Impregnation: PU Resin
  • Manufactured using Multi Heavy Edge Metallized PP Film ensuring better bonding between the electrode and end spray
  • Very low losses reduces temperature rise of Capacitors resulting in longer lifer
  • Wall mounting arrangement
  • Compact Size and light weight
  • Voltage range 380 - 440V, 50Hz 3-phase
  • Output range 1 - 20 KVAr
